AIR CARBON
Touring Specialist
| Specifications | |
| Pixel Pitch (mm): | 3.75 / 4.68 / 5.35 |
| Brightness (nits): | up to 4500 |
| Application: | Install / Rental |
| Environments: | Outdoor / Indoor |
| IP Rating: | up to IP65 |
Key Features
- Super lightweight panels
- Designed to create convex and concave curved displays
- Advanced magnetic connection system
- High Brightness and Refresh rate
- Super easy to assemble, no tools required
- Front Maintenance
AIR CARBON
TOURING SPECIALIST
The AC series delivers an innovative solution for rental and staging applications.
With high end componentry, composite build materials, and an extensive range of innovative accessories, the Air Carbon Series is the most advanced touring system on the market.
Built from a combination of carbon composites, aluminium, and magnesium, the panels are not only remarkably strong and robust, but also extremely lightweight. The extra-large size of the Air Carbon panels combine with an intuitive coupling system, for rapid installations in both straight and curved screen configurations.
The SMD 1921 LEDS’s ensure the Air Carbon produces a visually stunning image with deep blacks, high contrast, and vibrant colours. The LED modules are attached magnetically for quick and easy servicing from the front or rear.
The addition of the exclusive Air Carbon touring frame makes the installation process easier and more rapid than ever before.
The panels simply click into the touring frame without the need for additional screws or tools. The touring frame can then be easily assembled into the desired configuration through a combination of inbuilt locking systems, positioning pins, and curving system. The built in ladder provides easy access to anywhere on the screen.
AC SERIES FEATURES
Super lightweight panels
Advanced magnetic connection system
Super easy to assemble, no tools required
Designed to create convex and concave curved displays
High brightness and refresh rate
Front maintenance

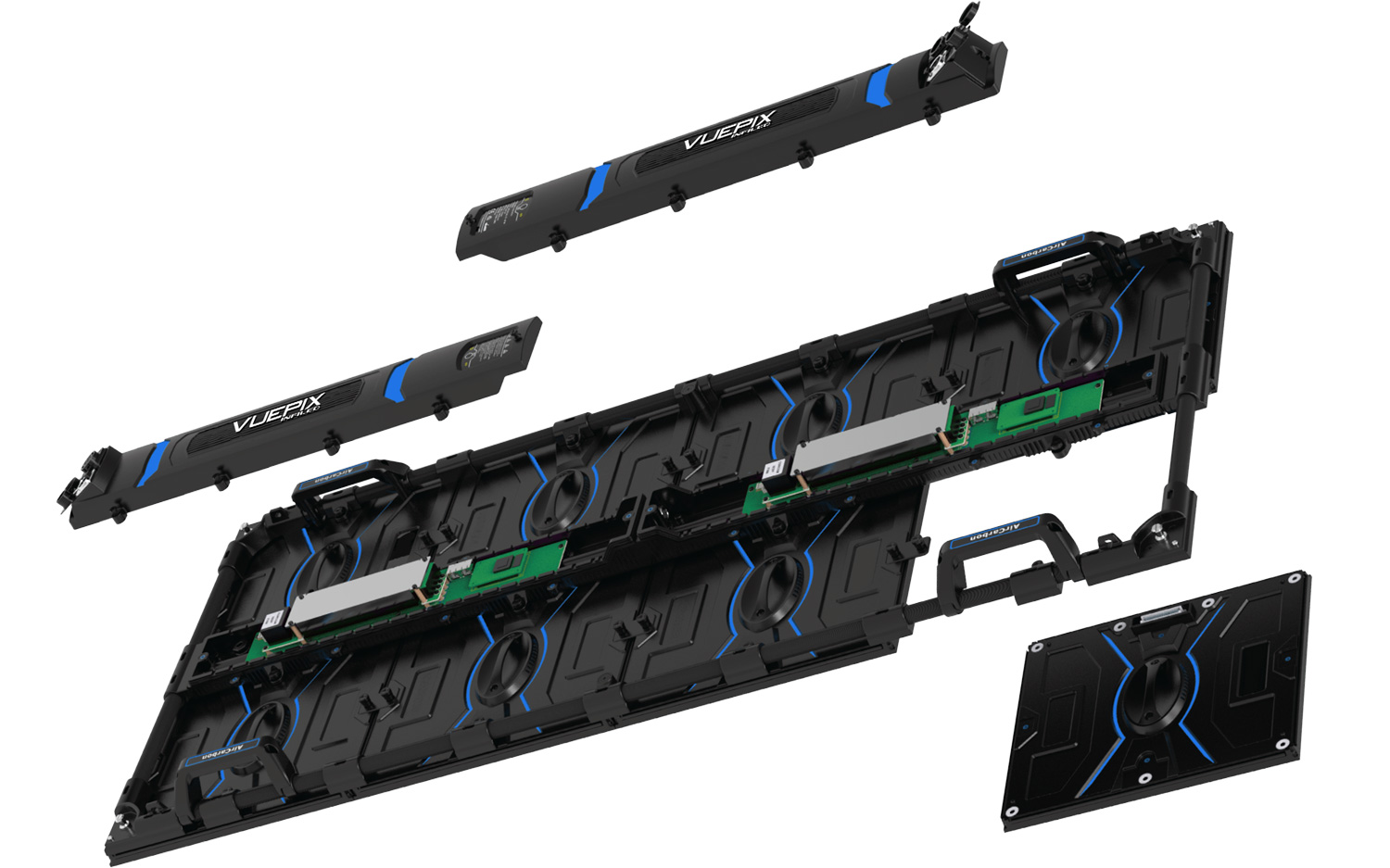

Easy Maintenance
LED modules and PDU use a combination of magnets and captive screws to make servicing the screens easy and quick.
Angle Coupler System
The Angle Coupler System can be used in place of the Touring Frame for quick and easy assembly of seamless curved screens. The couplers allow the panels to be adjusted in increments of 5 degrees, from -10° to +15°.

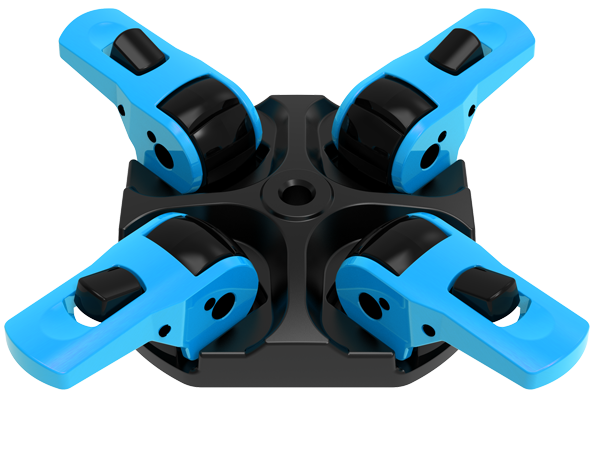

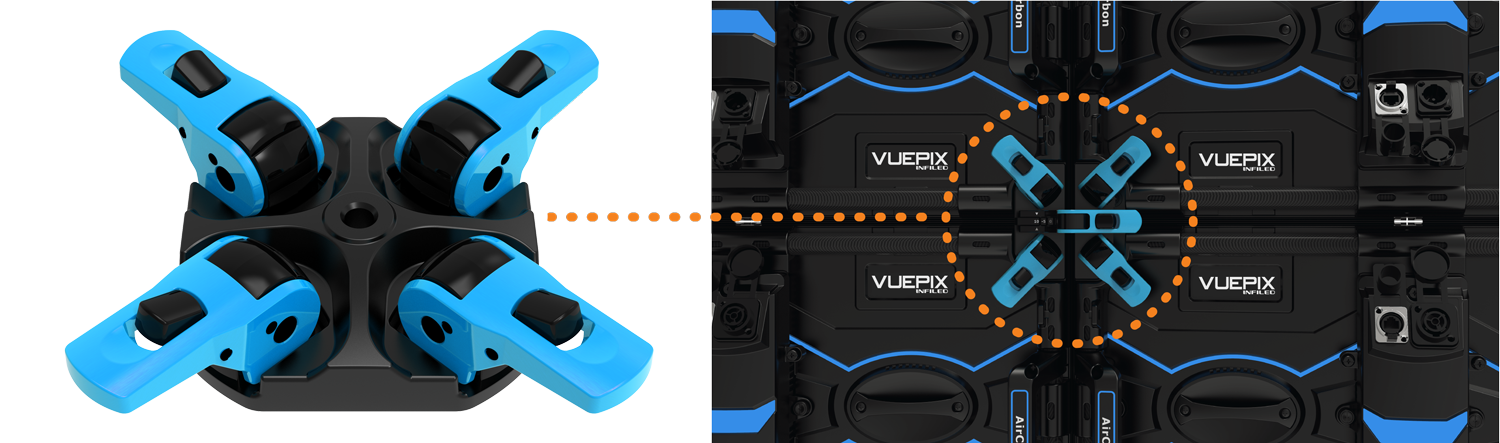

Quad Lock

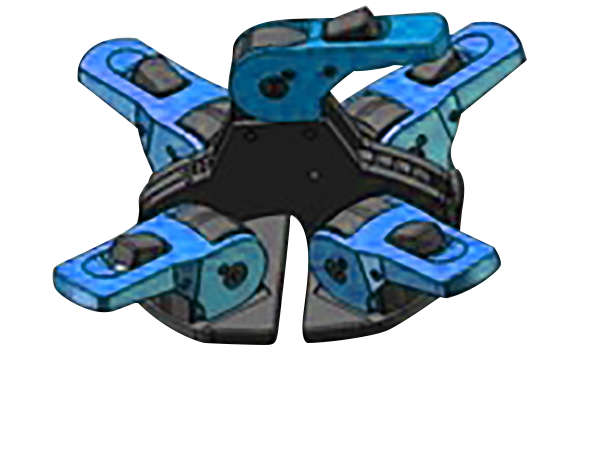

Quad Lock Curve
Twin Lock

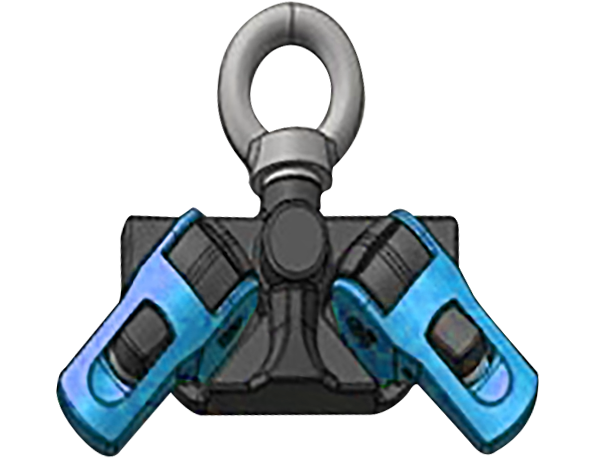

Twin Lock Flyer
Twin Flyer Curve
Touring System
The most advanced LED Screen touring system on the market.
Features

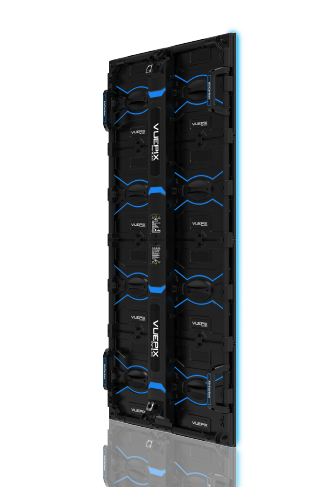

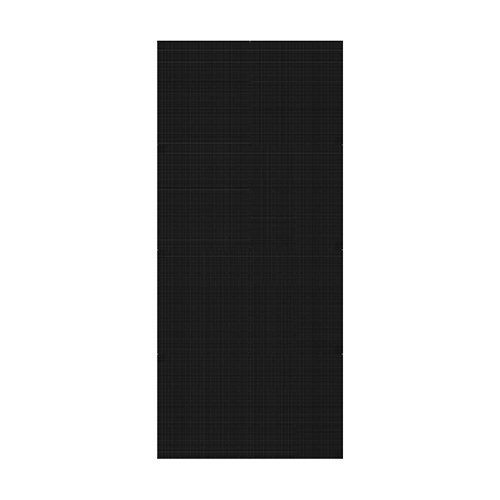

Lightweight Panel
14.5kg / panel

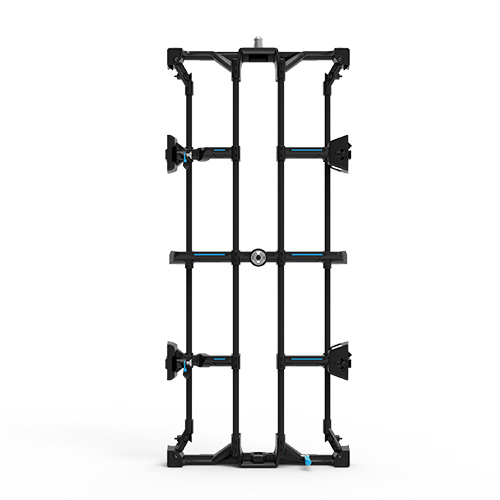

Lightweight Frame
12.5kg / frame
Intuitive Set-up
Positioning Pin / Automatic Lock

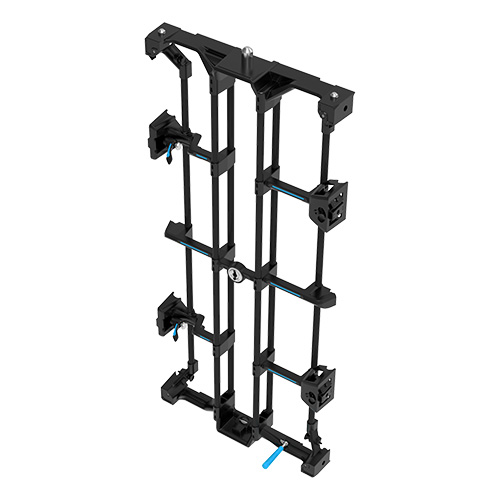

Climbing Frame
Strong carbon composite and aluminium alloy frame with integrated ladder.

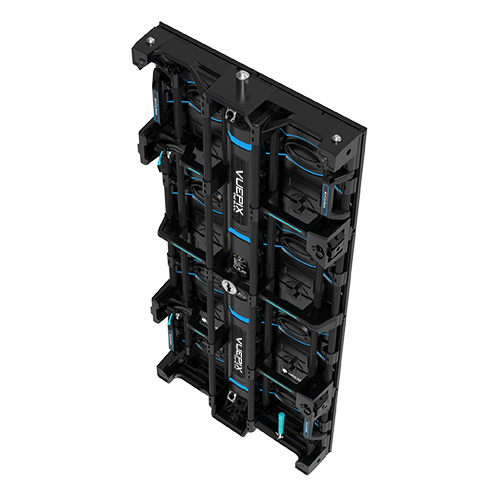

Serviceability
All components of the screen can be serviced while the panel is mounted into the touring frame.

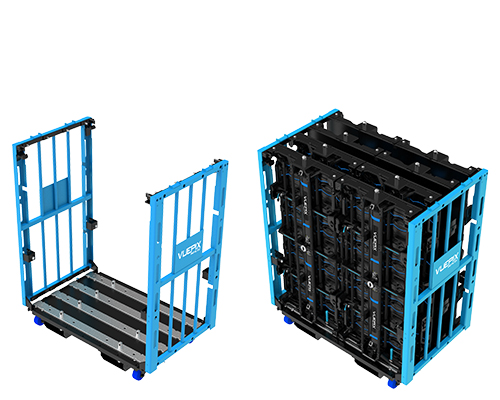

Touring Cart Solution
Full dolly, half dolly, & double dolly available.

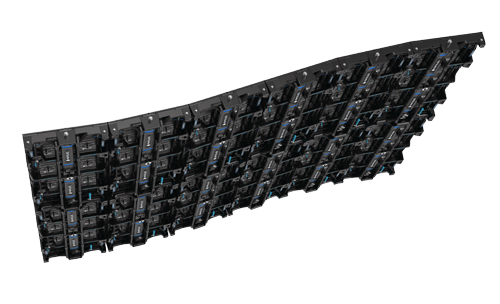

Curvability
No extra hardware is required for creating convex and concave display when using the touring frame. Convex and concave angle can range from +5° to -5° in 3 steps. No tools needed.
AC SERIES SHOWCASE

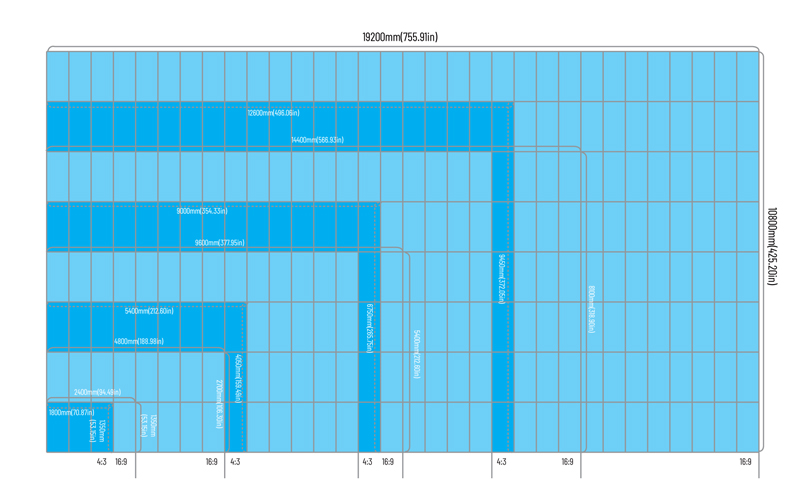

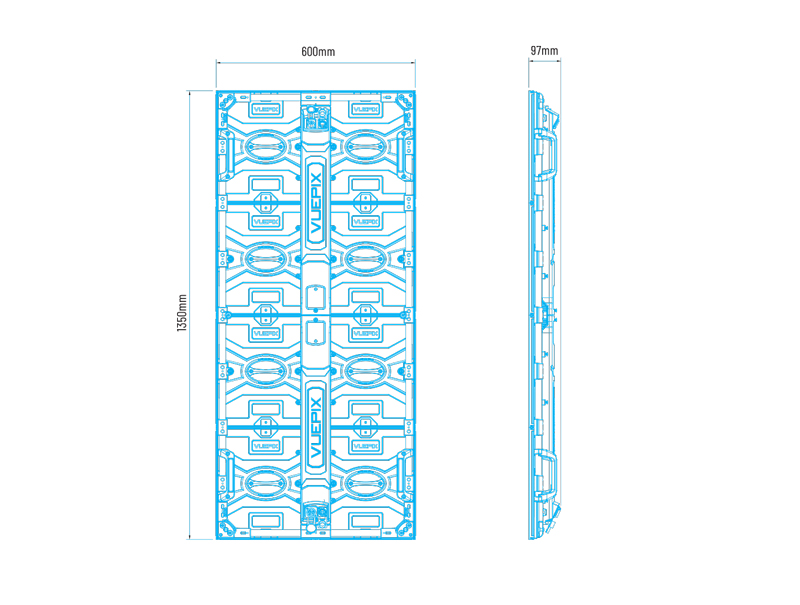

DISPLAY RATIOS AND DIMENSIONS
PRODUCT SPECIFICATIONS
| Model | AC3 Outdoor P3 | AC Outdoor P4 | AC Outdoor P5 |
| Series | AC | AC | AC |
| Pixel Pitch (mm) | 3.75 mm | 4.68 mm | 5.35 mm |
| Environment | Outdoor | Outdoor | Outdoor |
| LED Configuration | SMD1921 | SMD1921 | SMD1921 |
| Max Brightness | 4500 nits | 4500 nits | 4000 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 120 | 160 / 120 | 160 / 120 |
| Cabinet Weight | 14.5 Kg | 14.5 Kg | 14.5 Kg |
| Dimensions Width (mm) | 600 mm | 600 mm | 600 mm |
| Dimensions Height (mm) | 1350 mm | 1350 mm | 1350 mm |
| Dimensions Depth (mm) | 93 mm | 93 mm | 93 mm |
| Cabinet Resolution | 160 x 360 Pixels | 128 x 288 Pixels | 112 x 252 Pixels |
| Max Power Consumption / m2 | 563 W/m² | 563 W/m² | 740 W/m² |
| Avg Power Consumption / m2 | 187 W/m² | 187 W/m² | 247 W/m² |
| Max Power Consumption / Panel | 456 W/panel | 456 W/panel | 600 W/panel |
| Avg Power Consumption / Panel | 151 W/panel | 151 W/panel | 200 W/panel |
| Transparency | N/A | N/A | N/A |
| Curving | Optional | Optional | Optional |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | −10°C ~ +45°C | −10°C ~ +45°C | −10°C ~ +45°C |
| Ingress Protection | IP65 | IP65 | IP65 |
| Verification | FCC, ETL, CE, RoHS | FCC, ETL, CE, RoHS | FCC, ETL, CE, RoHS |
| Application | Rental / Install | Rental / Install | Rental / Install |
