GM Series
Grand Media Solutions
| Specifications | |
| Pixel Pitch (mm): | 6 / 8 / 10.67 / 12 / 16 |
| Brightness (nits): | Up to 6000 |
| Application: | Install |
| Environments: | Outdoor / Indoor |
| IP Rating: | IP65 |
Key Features
- Exceptionally high brightness up to 6,000 nits
- Outstanding contrast ratio
- Easy and quick hot swap of power & signal modules
- Convection cooled, no fans on board
- Advanced IP65 waterproof protection
- Both front and rear maintenance options

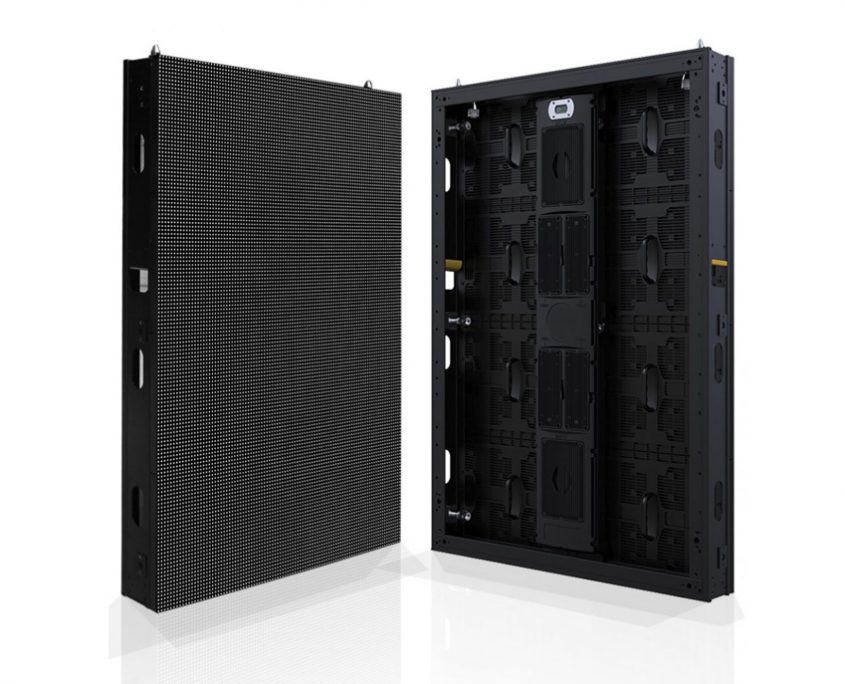

Grand Media Solutions
VuePix Grand Media Solutions brings new dimensions to the Digital Advertising Markets!
The revolutionary GM series has been designed specifically for fixed outdoor advertising applications, offering the best balance between weight and durability to withstand harsh environmental factors such as direct UV rays, varying temperatures, constant vibrations and severe weather conditions.
An exceptionally high brightness of up to 6,000nits, outstanding contrast and high refresh rates allow the GM series to deliver excellent visual effects in any light condition.
The VuePix GM series also features a patented Display Monitoring System, allowing live monitoring of the screens key vital working conditions and functionality remotely from anywhere around the globe. Based on the standard Internet structure, the cloud server automatically collects the specifications and sends report alerts to the operator via email/text if any defect occurs. The operator can also log into the system remotely and check the live conditions of the screen – temperature, humidity, power supply, etc.
The modular design of the cabinets allow for quick and easy hot swapping of the power and control modules and also has inbuilt cable management. The panels are designed with convection cooling and feature a memory card on board for storage of calibration data. There is also the option to add power redundancy into the unit.
The GM Series is lightweight at 31.3kg per cabinet and comes with Advanced IP65 waterproof protection and is available in both a front and rear access for maintenance.
GM SERIES FEATURES
Exceptionally high brightness up to 6000nits
Patented Display Monitoring System
Convection cooled, no fans on board
Advanced IP65 waterproof protection
Outstanding contrast ratio
Hot swap of power and signal modules
Lightweight and durable
Both front and rear maintenance options

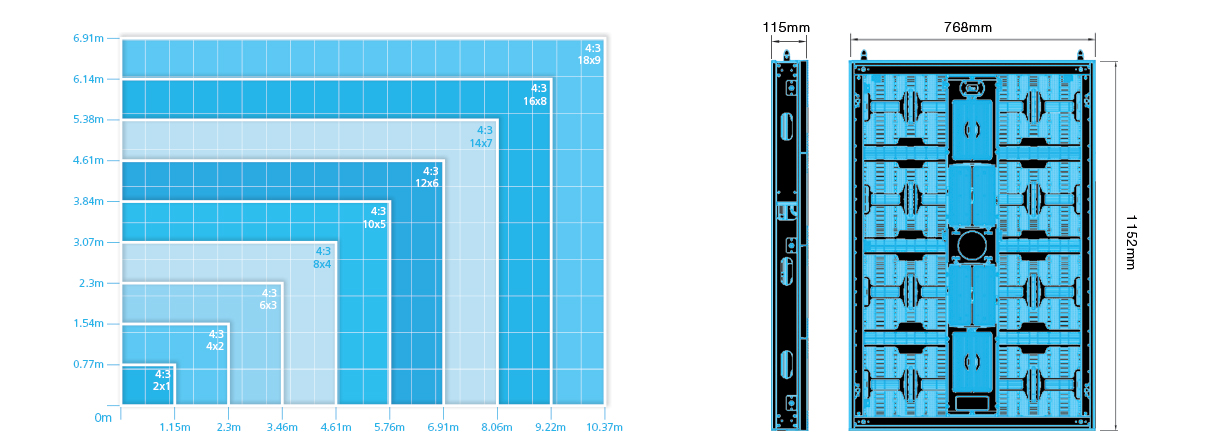

DISPLAY RATIOS AND DIMENSIONS
PRODUCT SPECIFICATIONS
| Model | GM Outdoor P6 | GM Outdoor P8 | GM Outdoor P10 | GM Outdoor P12 | GM Outdoor P16 |
| Series | GM | GM | GM | GM | GM |
| Pixel Pitch (mm) | 6 mm | 8 mm | 10.67 mm | 12 mm | 16 mm |
| Environment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 6000 nits | 6000 nits | 5000 nits | 5000 nits | 6000 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 100 | 160 / 95 | 160 / 95 | 160 / 110 | 160 / 110 |
| Cabinet Weight | 31.3 Kg | 31.3 Kg | 31.3 Kg | 31.3 Kg | 31.3 Kg |
| Dimensions Width (mm) | 768 mm | 768 mm | 768 mm | 768 mm | 768 mm |
| Dimensions Height (mm) | 1152 mm | 1152 mm | 1152 mm | 1152 mm | 1152 mm |
| Dimensions Depth (mm) | 115 mm | 115 mm | 115 mm | 115 mm | 115 mm |
| Cabinet Resolution | 128 x 192 Pixels | 96 x 144 Pixels | 72 x 108 Pixels | 64 x 96 Pixels | 48 x 72 Pixels |
| Max Power Consumption / m2 | 678 W/m² | 590 W/m² | 509 W/m² | 509 W/m² | 565 W/m² |
| Avg Power Consumption / m2 | 226 W/m² | 170 W/m² | 170 W/m² | 170 W/m² | 189 W/m² |
| Max Power Consumption / Panel | 600 W/panel | 450 W/panel | 450 W/panel | 450 W/panel | 500 W/panel |
| Avg Power Consumption / Panel | 200 W/panel | 150 W/panel | 150 W/panel | 150 W/panel | 167 W/panel |
| Transparency | N/A | N/A | N/A | N/A | N/A |
| Curving | N/A | N/A | N/A | N/A | N/A |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | −10°C ~ +45°C | −10°C ~ +45°C | −10°C ~ +45°C | −10°C ~ +45°C | −10°C ~ +45°C |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Verification | CE, FCC, ETL, RoHS, RCM | CE, FCC, ETL, RoHS, RCM | CE, FCC, ETL, RoHS, RCM | CE, EMC, LVD, FCC, ETL, RoHS | CE, FCC, ETL, RoHS, RCM |
| Application | Rental / Install | Rental / Install | Rental / Install | Rental / Install | Rental / Install |
