HR Series
Ultra HD Rental Displays
| Specifications | |
| Pixel Pitch (mm): | 0.9 / 1.5 / 1.8 / 2.3 / 2.5 / 3.1 |
| Brightness (nits): | up to 1500 |
| Application: | Rental |
| Environments: | Indoor |
| IP Rating: | IP30 |
Key Features
- Ultra fine pixel pitch
- The highest quality LED components
- Superb image quality
- Easily configured into 2K, 4K and 8K resolution displays
- Automatic retractable corners & feet for extra protection
- Separate power and data unit

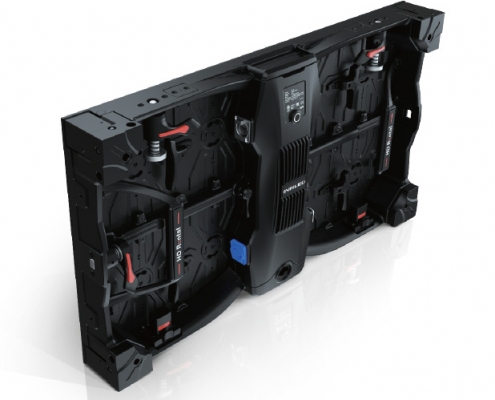

Ultra HD Rental Displays
The HR series by VuePix Infiled represents the pinnacle of high-resolution rental and touring LED display systems.
The ultra-fine pixel pitch together with high gray scale combined to deliver a spectacular image quality for the most demanding rental and touring applications.
With the aspect ratio of 16:9 and pixel pitch ranging from 0.9mm to 3.1mm, the HR series is highly flexible and can be easily configured into 2K, 4K and 8K resolution displays.
The HR series comes with an innovative feature set specific for touring and rental markets. The durable panels are equipped with automatic retractable corners and retractable feet to protect the LED panels during set-up, transportation and handling.
With the innovative tools specific for both front and rear service, maintenance of the LED systems and the panels is efficient and hassle free, resulting in minimal screen downtime. The separate power and data unit can be easily exchanged with no tools required.
Designed specifically for the touring and rental markets and featuring the highest quality LED components, the HR series is the perfect solution for any high-resolution indoor rental application where a superb image quality is paramount.
HR SERIES FEATURES
Ultra High Definition
Easy Installation
Rental & Touring
High Definition

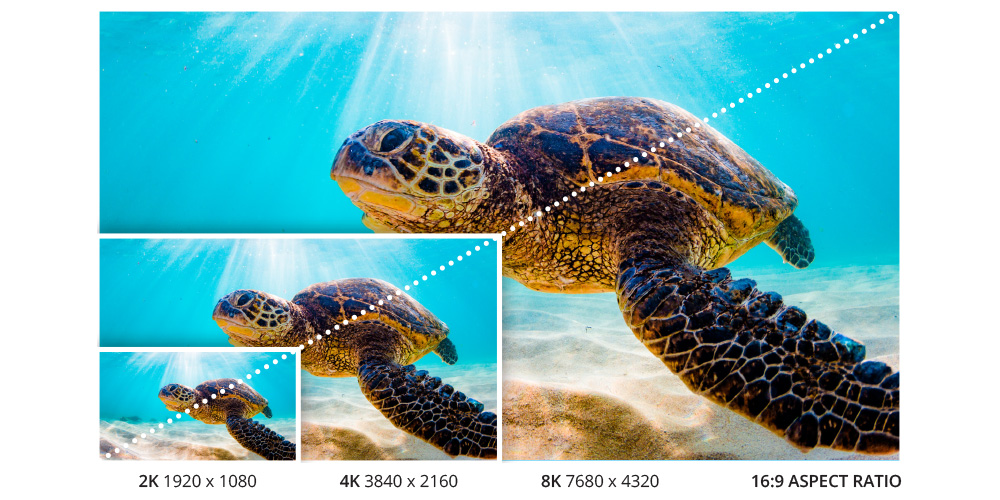

Aspect Ratio
A panel ratio of 16:9 combined with fine pixel pitch allows for easy setup of 2K, 4K and 8K resolution displays.
Easy Configuration
Easy setup for 2K, 4K, and 8K screen resolutions.
Features

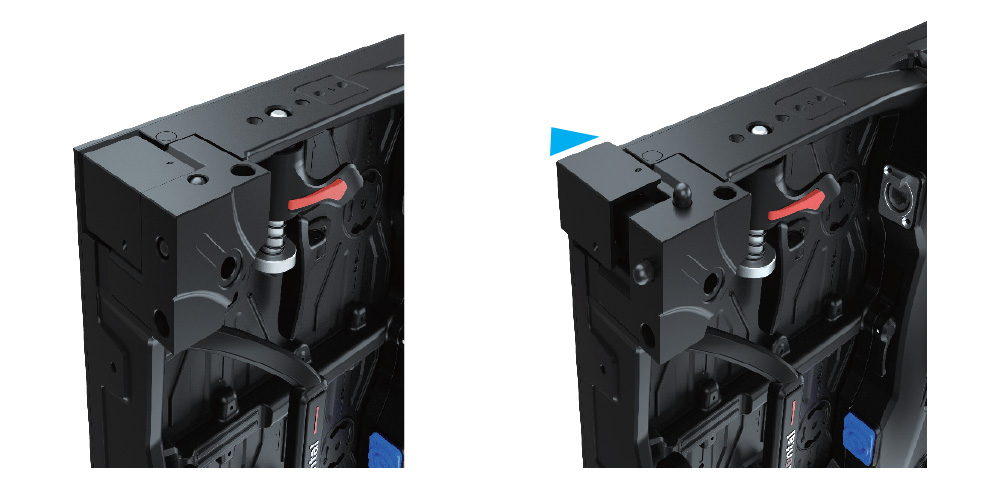

Panel Protection – Retractable Corners
The automatic retractable corners help to prevent damage of the LEDs during set-up and transportation.

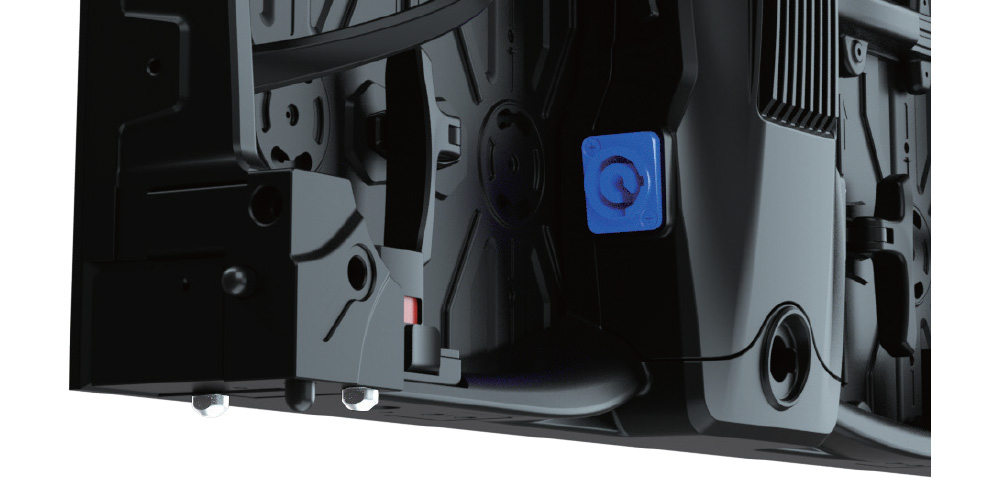

Panel Protection – Retractable Feet
The retractable feet help to protects the bottom edge of the panels when placed on the ground.

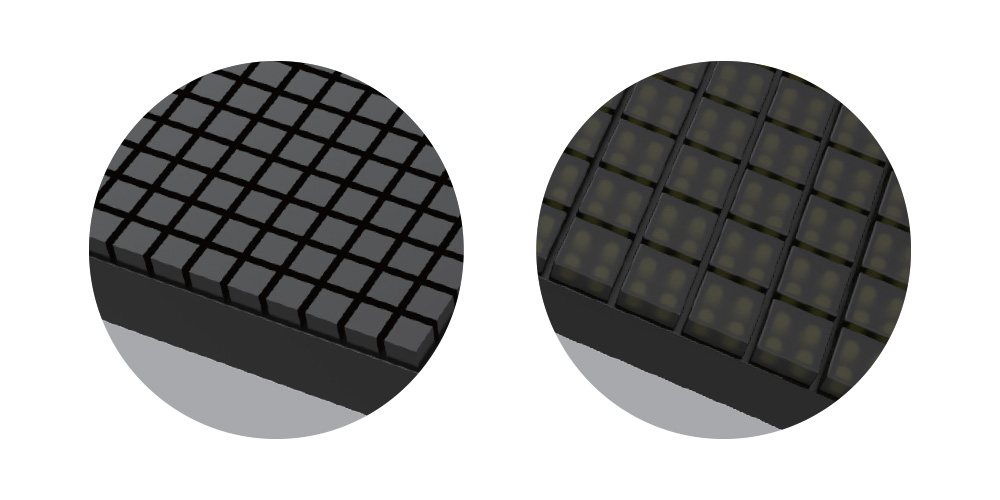

Cutting Edge LED Chips
The HR Series comes with either IMD & COB LEDs. The fine pixel pitch LEDs are more durable and robust with high-performance of anti-collision.

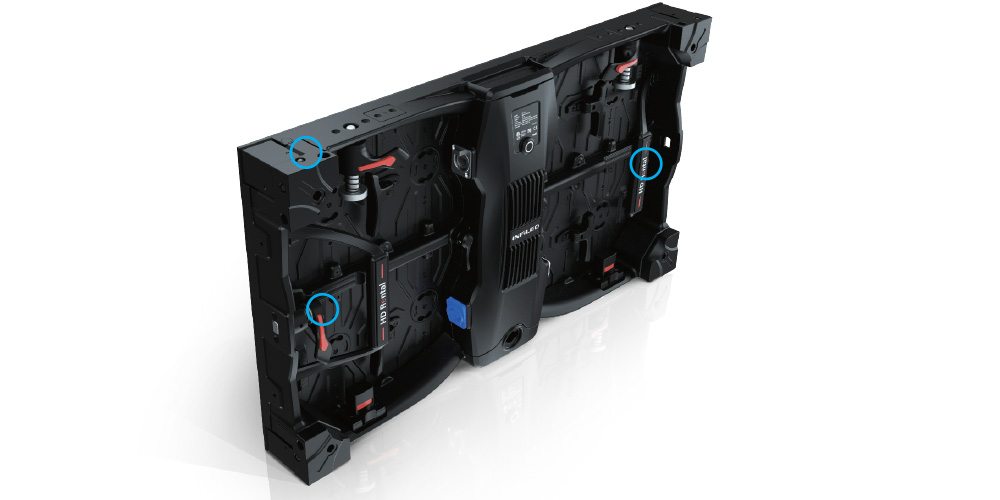

Easy Set-up & Alignment
The panels feature ergonomic handles for convenient operation, fast locks for easy assembly and positioning pins for quick and precise alignment.

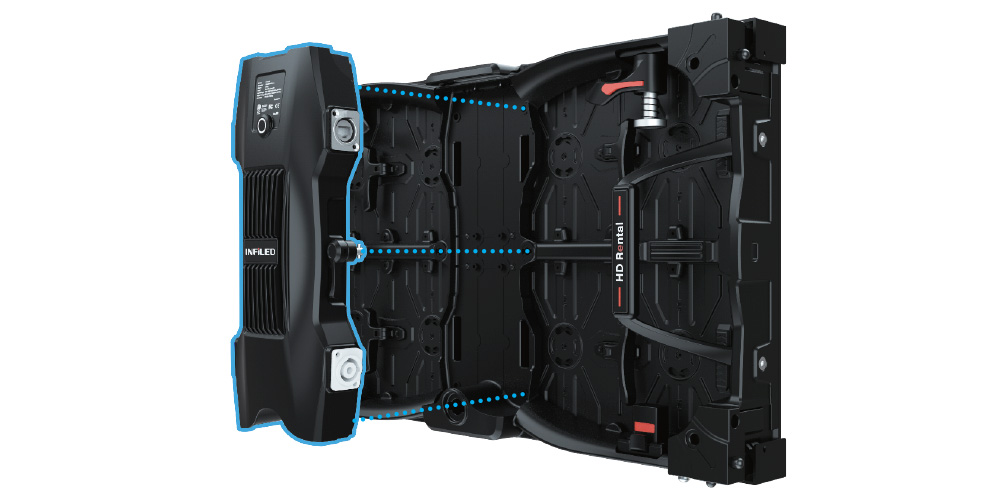

Easy Maintenance
The HR panels offer both front and rear maintenance access. The innovative suction tool is used for front maintenance, while the specially designed rear service tool helps to securely remove the modules while positioned behind the screen, reducing the risk of damage.
The separate power and data unit can be easily exchanged with no tools required.

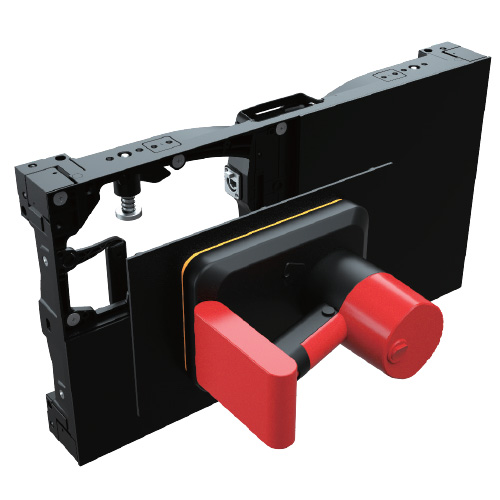

Front Service

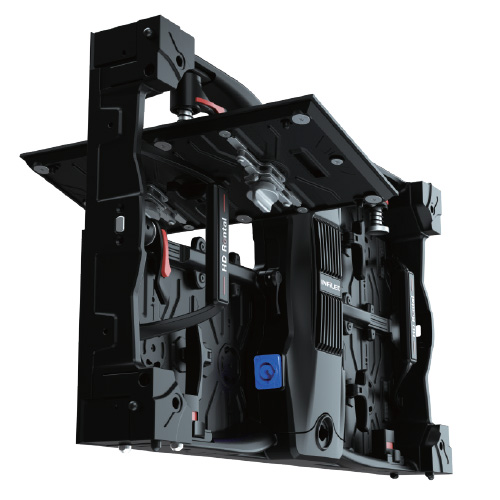

Rear Service
PRODUCT SPECIFICATIONS
| Model | HR Indoor P0.9 | HR Indoor P1.5 | HR Indoor P1.5 MiniLED | HR Indoor P1.8 | HR Indoor P2.3 |
| Series | HR | HR | HR | HR | HR |
| Pixel Pitch (mm) | 0.94 mm | 1.56 mm | 1.56 mm | 1.88 mm | 2.34 mm |
| Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| LED Configuration | COB | COB | MiniLed | 3 IN 1 SMD | COB |
| Max Brightness | 1000 nits | 1000 nits | 1000 nits | 1000 nits | 1200 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
| Cabinet Weight | 7.8 Kg | 7.8 Kg | 7.2 Kg | 7.2 Kg | 7.2 Kg |
| Dimensions Width (mm) | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Dimensions Height (mm) | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Dimensions Depth (mm) | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Cabinet Resolution | 640 x 360 Pixels | 384 x 216 Pixels | 384 x 216 Pixels | 320 x 180 Pixels | 256 x 144 Pixels |
| Max Power Consumption / m2 | 900 W/m² | 900 W/m² | 900 W/m² | 900 W/m² | 900 W/m² |
| Avg Power Consumption / m2 | 300 W/m² | 300 W/m² | 300 W/m² | 300 W/m² | 300 W/m² |
| Max Power Consumption / Panel | 180 W/panel | 180 W/panel | 180 W/panel | 180 W/panel | 180 W/panel |
| Avg Power Consumption / Panel | 60 W/panel | 60 W/panel | 60 W/panel | 60 W/panel | 60 W/panel |
| Transparency | N/A | N/A | N/A | N/A | N/A |
| Curving | N/A | N/A | N/A | N/A | N/A |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | -10°C ~ +45°C | -10°C ~ +45°C | -10°C ~ +45°C | -10°C ~ +45°C | -10°C ~ +45°C |
| Ingress Protection | IP30 | IP30 | IP30 | IP30 | IP30 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Rental | Rental | Rental | Rental | Rental |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model | HR Pro 2.5 | HR Indoor P3.1 MiniLED |
| Series | HR | HR |
| Pixel Pitch (mm) | 2.5 mm | 3.125 mm |
| Environment | Indoor | Indoor |
| LED Configuration | COB | MiniLED |
| Max Brightness | 1500 nits | 1500 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 160 | 160 / 160 |
| Cabinet Weight | 7.2 Kg | 7.2 Kg |
| Dimensions Width (mm) | 600 mm | 600 mm |
| Dimensions Height (mm) | 338 mm | 338 mm |
| Dimensions Depth (mm) | 73 mm | 73 mm |
| Cabinet Resolution | 240 x 135 Pixels | 192 x 108 Pixels |
| Max Power Consumption / m2 | 900 W/m² | 900 W/m² |
| Avg Power Consumption / m2 | 300 W/m² | 300 W/m² |
| Max Power Consumption / Panel | 180 W/panel | 180 W/panel |
| Avg Power Consumption / Panel | 60 W/panel | 60 W/panel |
| Transparency | N/A | N/A |
| Curving | N/A | N/A |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | -10°C ~ +45°C | -10°C ~ +45°C |
| Ingress Protection | IP30 | IP30 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Rental | Rental |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
